Resin-Coated-Copper (RCC) ICP Applications

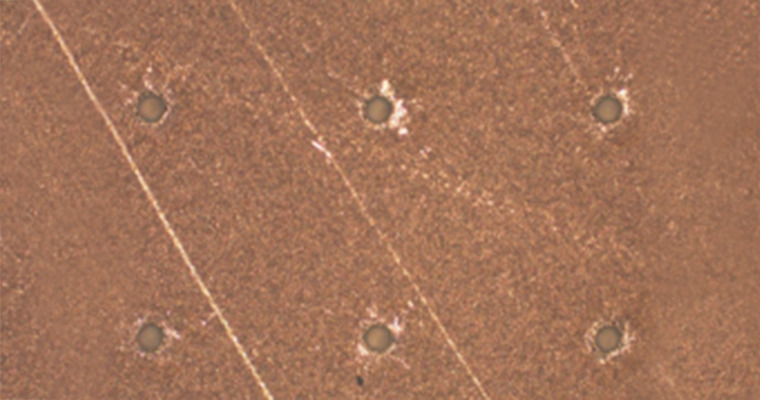

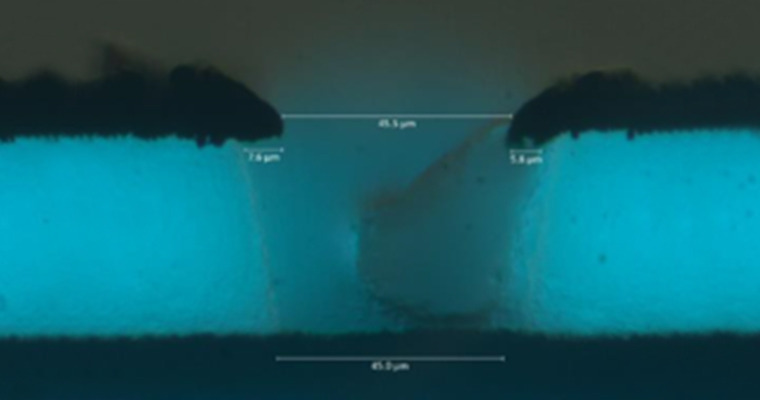

70 μm via on 35 μm RCC Example

  • System: Geode
  • Stackup: 3/35/18
  • Sample size: 20
  • OH - μm (µ/σ): 5.4/1.0
  • Taper - % (µ/σ): 81.0/1.7

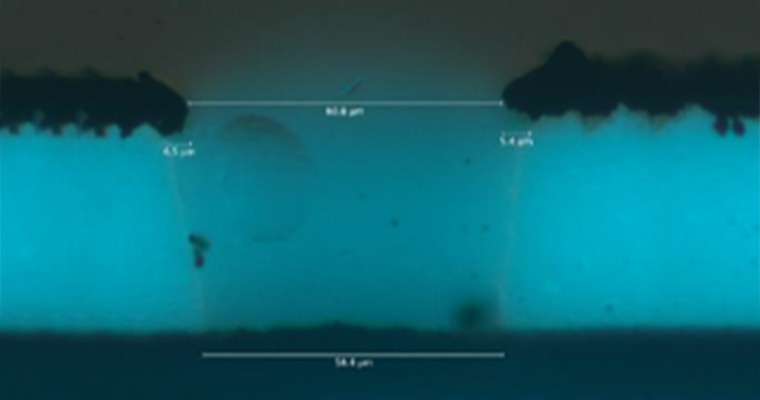

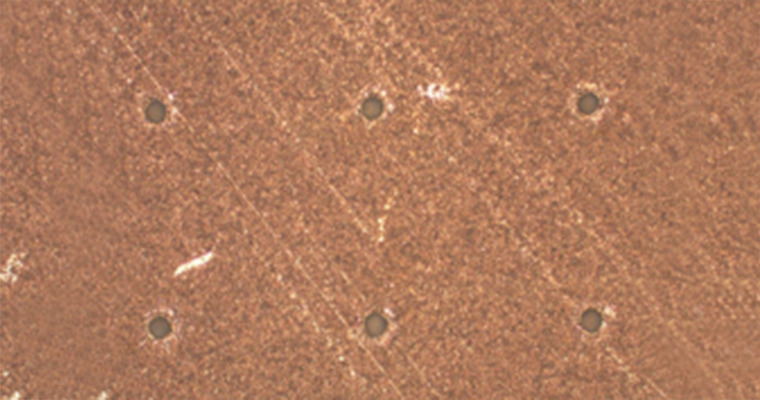

65 μm via on 35 μm RCC Example

  • System: Geode
  • Stackup: 3/35/18
  • Sample size: 20
  • OH - μm (µ/σ): 6.4/0.9
  • Taper - % (µ/σ): 82.8/2.8

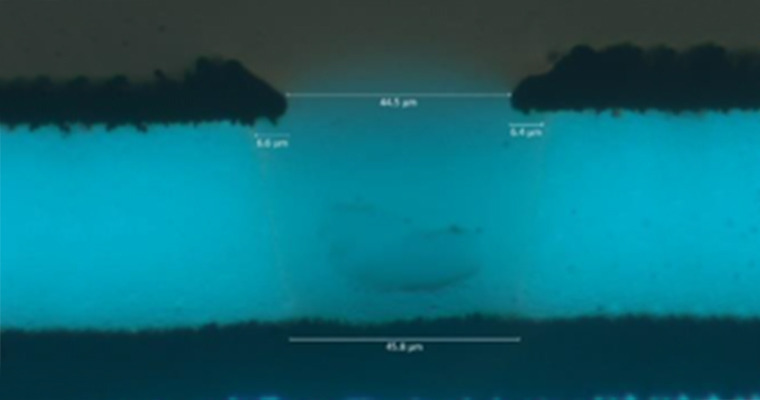

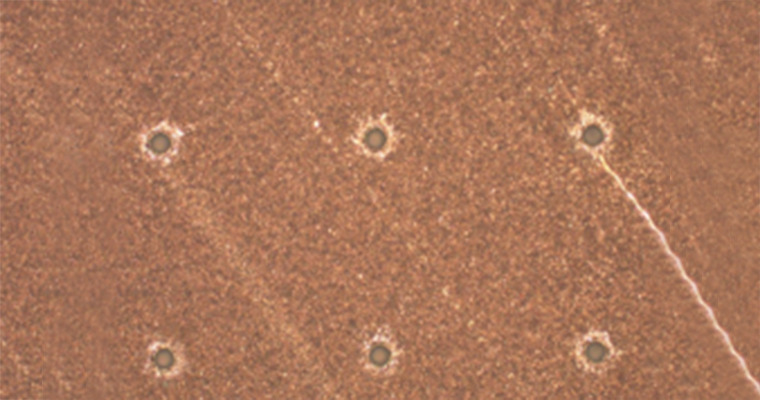

60 μm via on 35 μm RCC Example

  • System: Geode
  • Stackup: 3/35/18
  • Sample size: 20
  • OH - μm (µ/σ): 6.7/0.9
  • Taper - % (µ/σ): 78.0/1.8

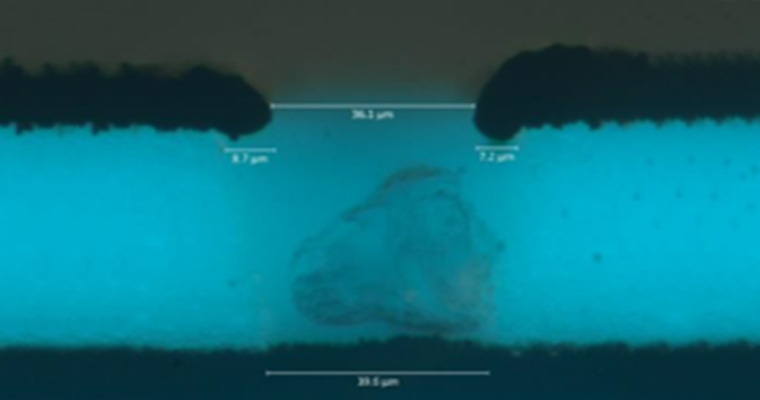

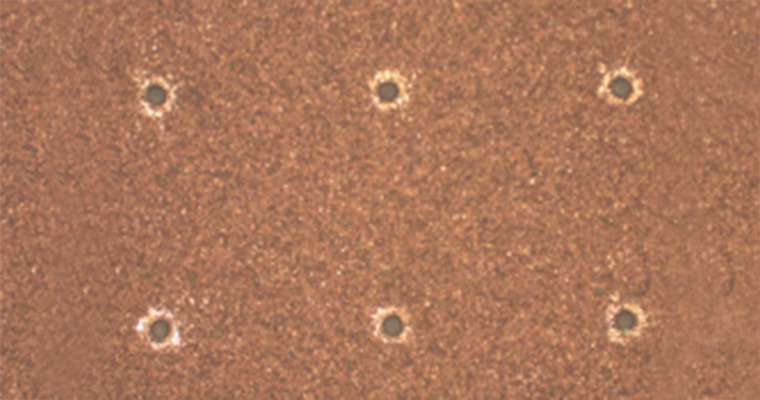

55 μm via on 35 μm RCC Example

  • System: Geode
  • Stackup: 3/35/18
  • Sample size: 20
  • OH - μm (µ/σ): 6.8/1.6
  • Taper - % (µ/σ): 78.1/3.5
