Precision flex material handling. Incorporate thin or sensitive flex materials into your production-oriented processing flow without sacrificing quality.
Features
Maintain high-volume manufacturing with flex PCB materials

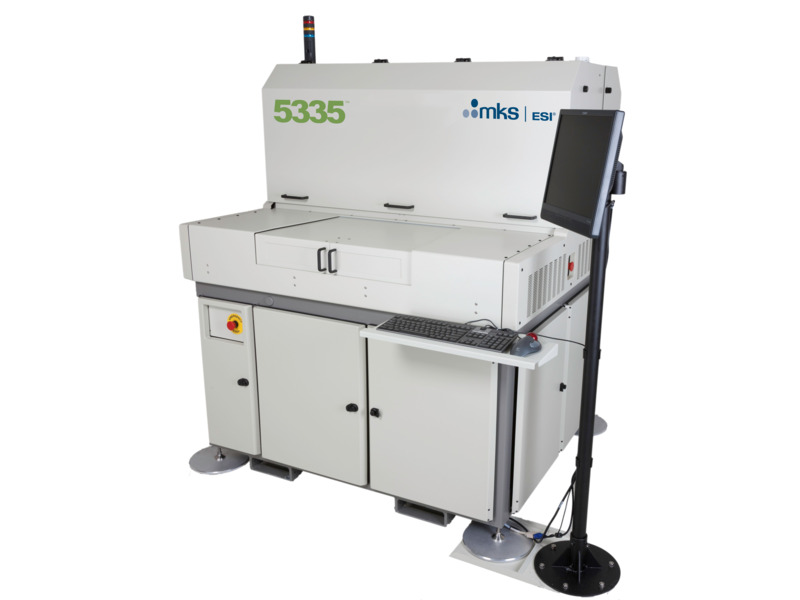

RollMaster Plus™ by Northfield Automation extracts maximum performance out of your ESI flexible circuit laser drilling tools. Blaze through material using the 5335’s maximum 1.5G stage acceleration with the RollMaster Plus' proprietary lightweight dancer design. Reduce your cycle time with RollMaster Plus' high-speed web indexing.
Soft Touch
RollMaster Plus handles your delicate flexible circuit material with a soft touch. Its responsive ultra-light dancer design avoids web wrinkle and reduces web distortion with even your thinnest flexible circuit materials. Air turn bars enable no-touch, no-damage motion even at the highest speeds and acceleration.
Adjusts to Your Processing Needs
RollMaster Plus adjusts to your processing needs. Move and replace the handler without realignment to enable fast transitions between panel and R2R production. Quickly shift between roll core diameters with its unique roller design. Further configure the RollMaster Plus with options such as splice stations, web cleaners, interleaf rollers and more.
Processes
Web handling compatible with ESI’s flexible circuit laser drilling tools
Rolled Flex Materials With
- Web widths between 150-520 mm
- Roll weight up to 70 kg
- Roll outer diameter up to 400 mm
- Films and laminates as thin as 12 um and below
