Green Sheet Low-Temperature Co-Fired Ceramic (LTCC) ICP Applications

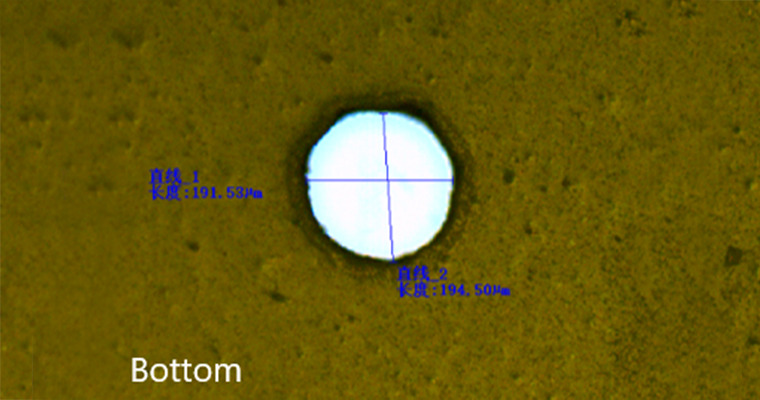

200 μm LTH Example

  • System: Geode S
  • Stackup: 70/5/50
  • Sample size: 3
  • Top Diameter (µm): 196.9
  • Bottom Diameter (µm):: 190.4

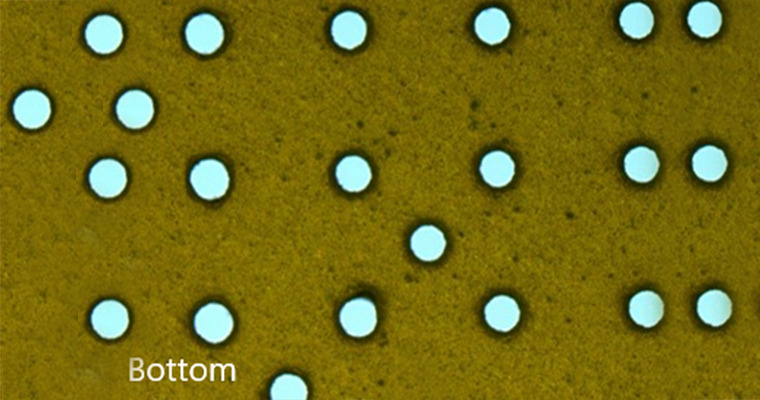

100 μm LTH Example

  • System: Geode S
  • Stackup: 70/5/50
  • Sample size: 50
  • Top Diameter (µ/σ): 100.2/3.7
  • Bottom Diameter (µ/σ): 94.6/2.3

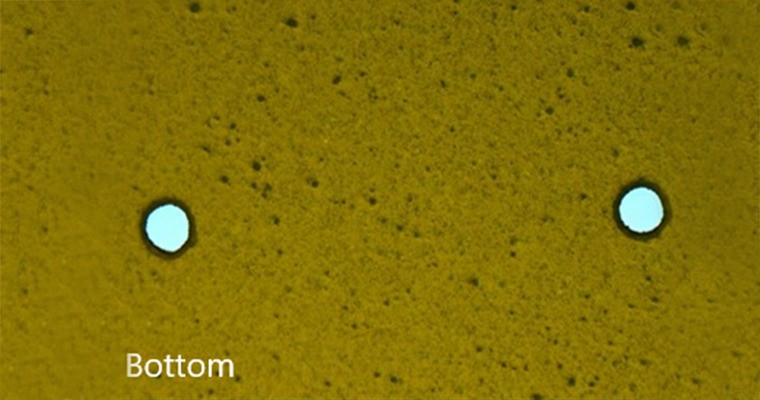

80 μm LTH Example

  • System: Geode S
  • Stackup: 70/5/50
  • Sample size: 80
  • Top Diameter (µ/σ): 82.3/1.7
  • Bottom Diameter (µ/σ): 79.1/2.1

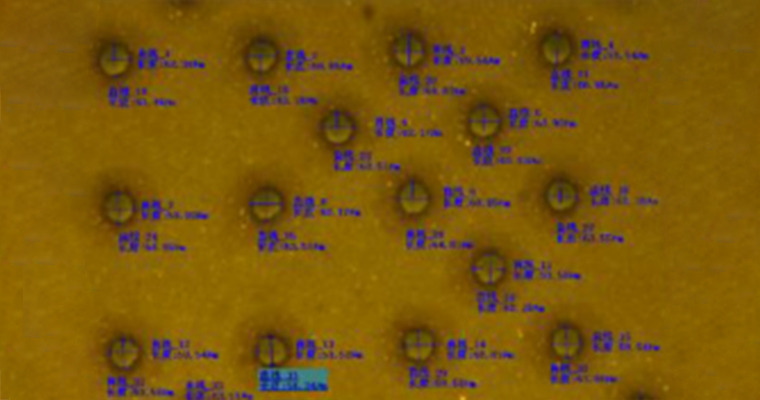

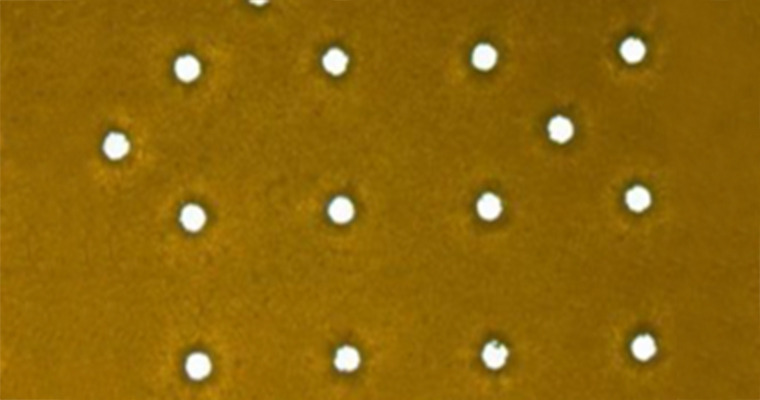

60 μm LTH Example

  • System: Geode S
  • Stackup: 70/5/50
  • Sample size: 60
  • Top Diameter (µ/σ): 61.8/1.3
  • Bottom Diameter (µ/σ): 56.7/1.4
