Bismaleimide-Triazine Resin (BT) ICP Applications

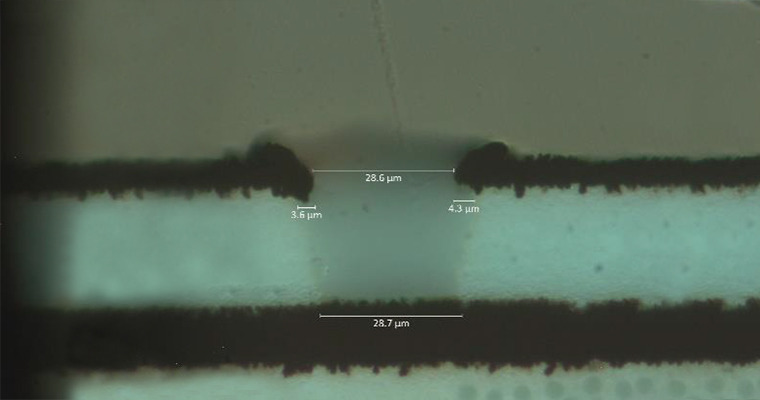

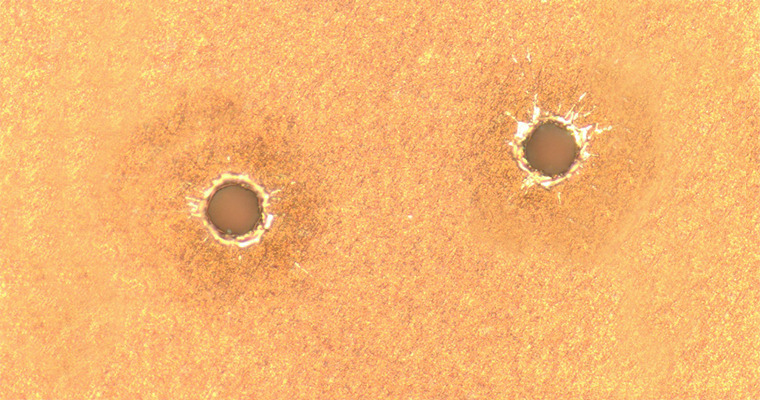

35 μm BVH with Brown Oxide Example

  • System: Geode L
  • Stackup: 5/25/15
  • Sample size: 19
  • OH - μm (µ/σ): 4.0/0.9
  • Taper - % (µ/σ): 87.9/6.3

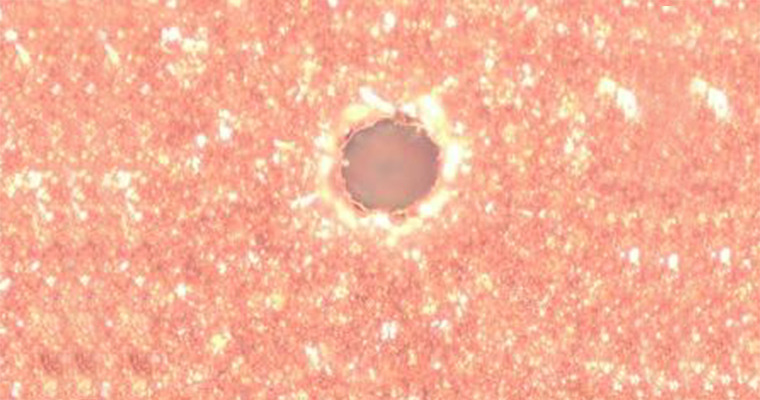

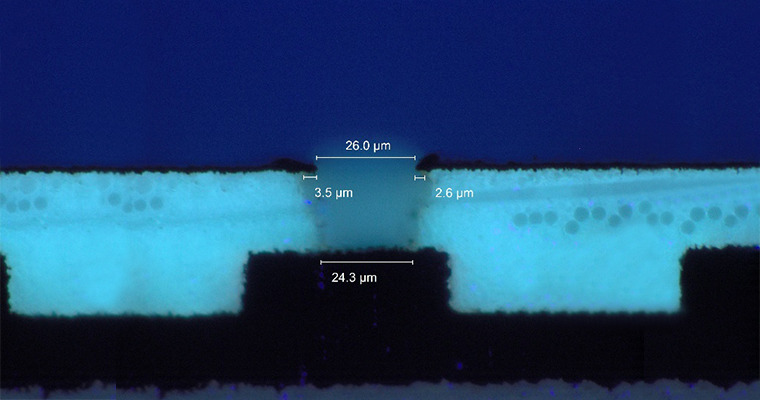

25 μm BVH on Treated Panel Example

  • System: Geode VS
  • Stackup: 1.5/20/20
  • Sample size: 40
  • OH - μm (µ/σ): 3.46/0.79
  • Taper - % (µ/σ): 98.1/0.08

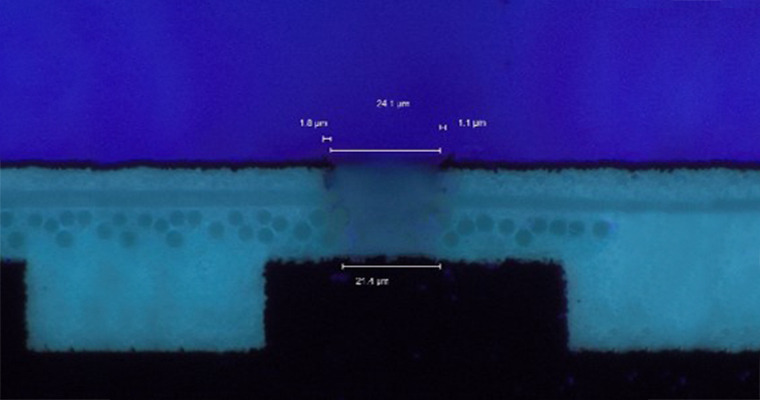

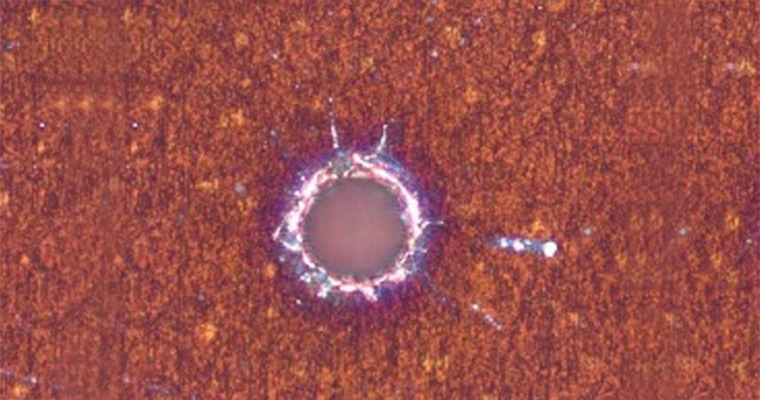

25 μm BVH on Untreated Panel Example

  • System: Geode VS
  • Stackup: 1/20/20
  • Sample size: 40
  • OH - μm (µ/σ): 4.3/1.2
  • Taper - % (µ/σ): 107.5/10.1

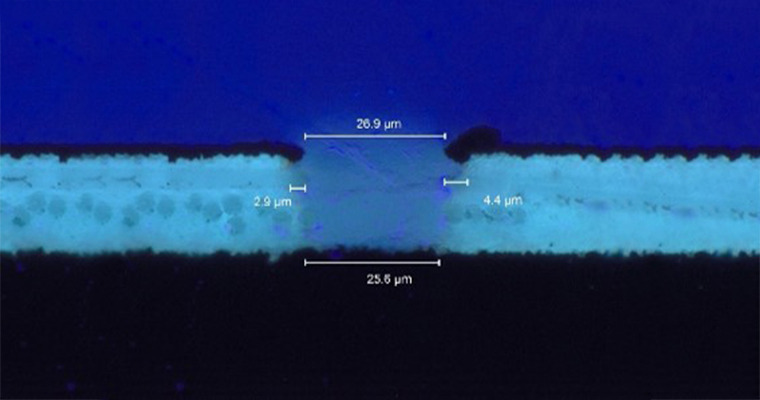

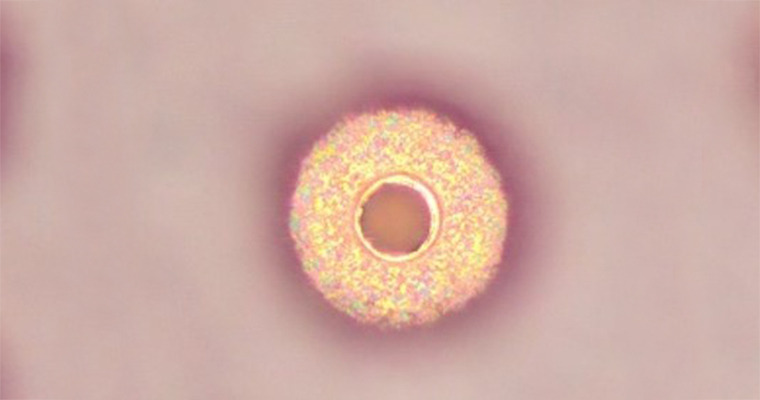

24 μm via on Dry Film Example

  • System: Geode VS
  • Stackup: 1/20/20
  • Sample size: 30
  • OH - μm (µ/σ): 3.4/1.3
  • Taper - % (µ/σ): 96.8/8.9
